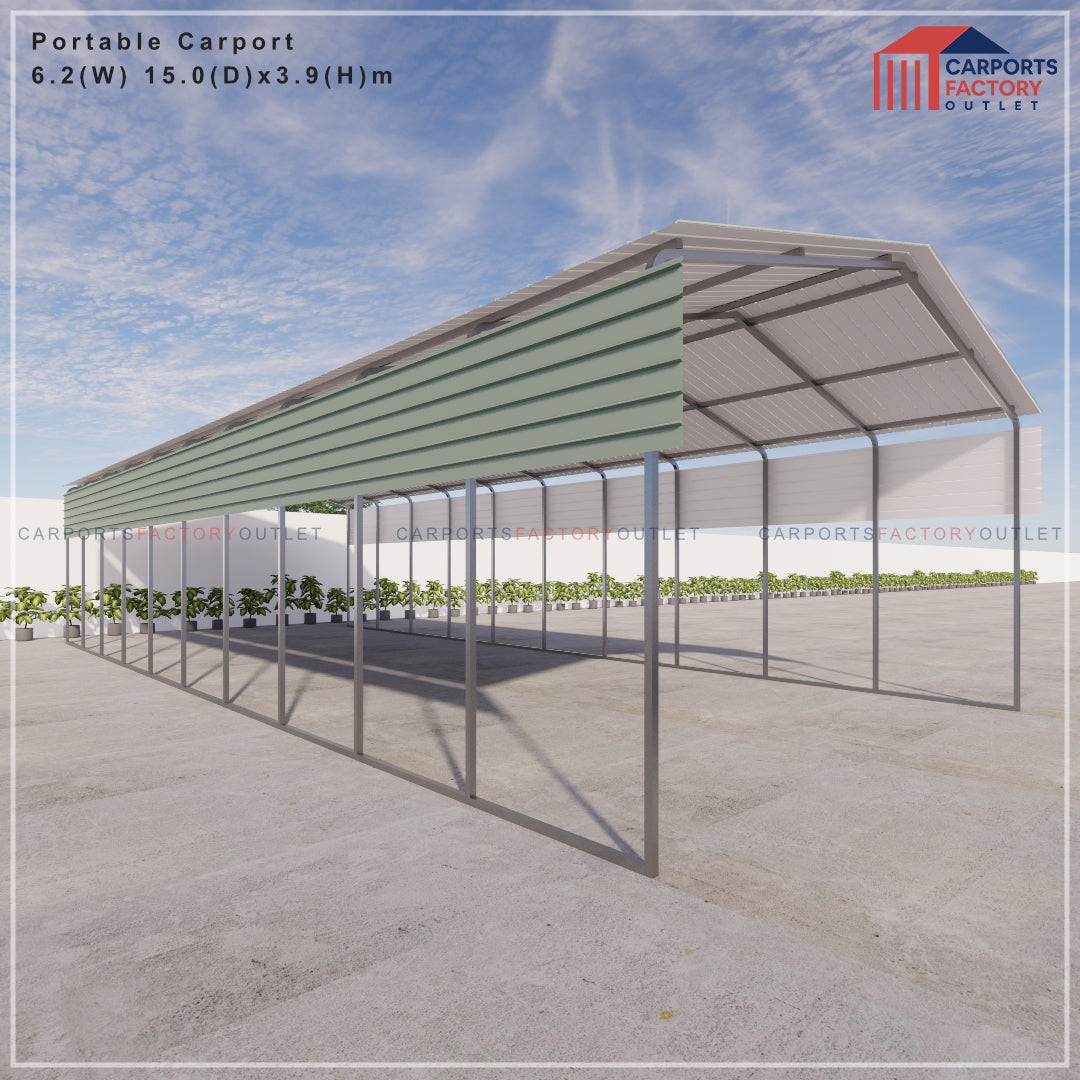

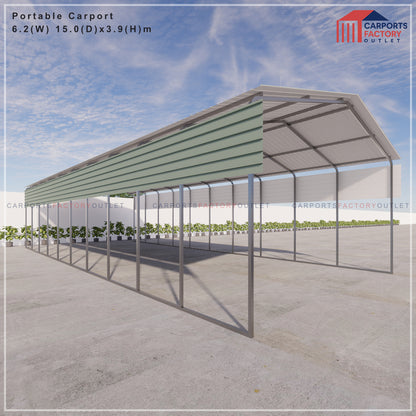

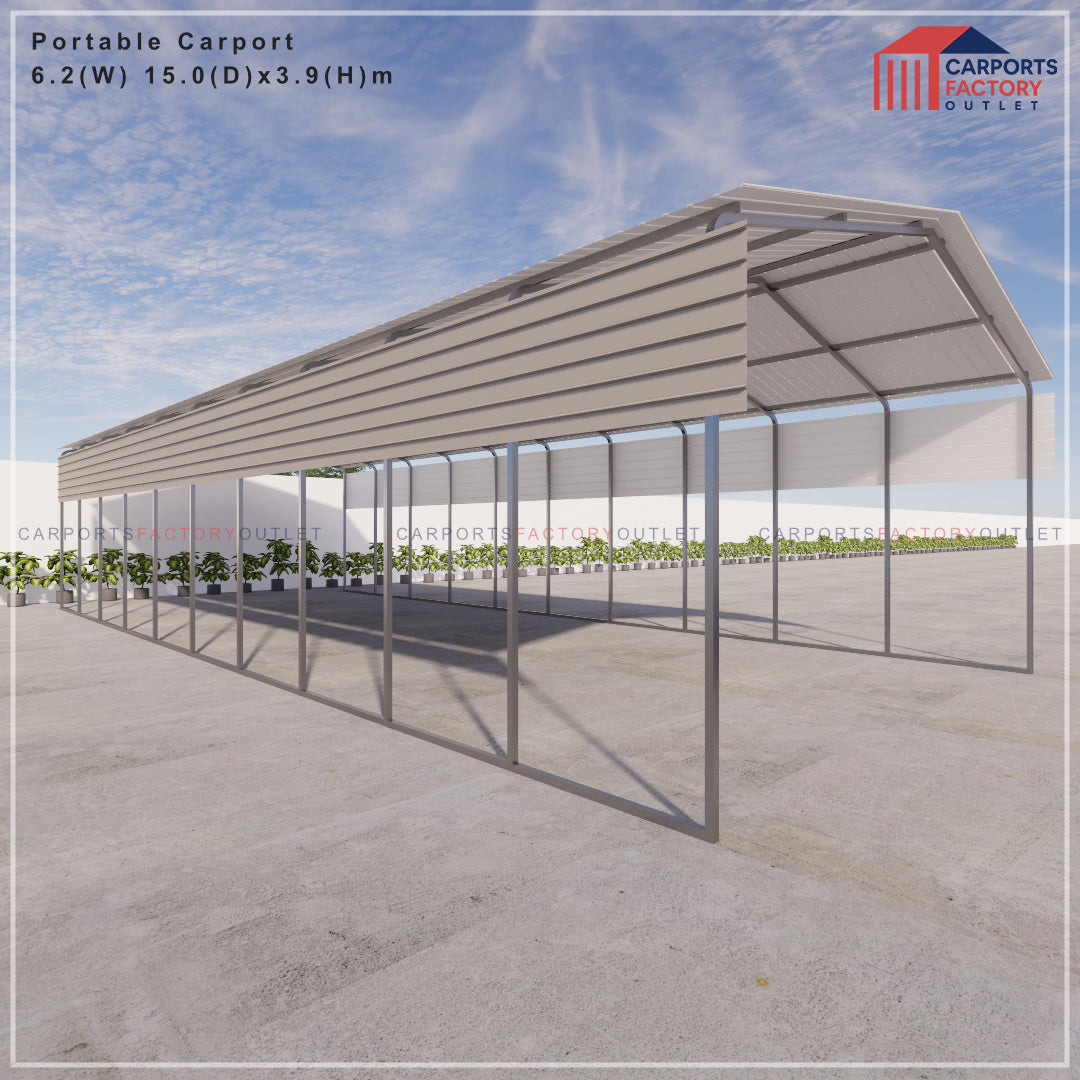

Portable Carport 6.2(W)x15.0(D)x3.9(H)m Gable Roof

Building Foundation:

• Flat Ground
• Piers or Concrete Slab

Ground Fixing Options:

• Concrete Surface: Supplied with high-strength Dyna bolts
• Soil or Dirt Surface: Aluminium ground spikes available – optional add-on

Key Product Specifications:

• Dimensions: 6.2m (W) x 15.0m (D) x 3.9m (H Ridge)
• Wall Height: 3.1m | Ridge Height: 3.9m
• Optional Height Extension: Extend up to 700mm for a total of 3.8m (Wall) / 4.9m (Ridge) – available at additional cost
• Roofing: 0.35mm thick galvanized steel panels with high-grade corrosion-resistant paint for maximum longevity

To meet transport requirements, this shed uses shorter roofing sheets instead of full-length panels. As a result, silicone sealing is required at the joins to ensure proper waterproofing.

• Roof Plumbing: This gable (Vertical) roof design is ideal for installing gutters and efficiently collecting rainwater. Gutters are not included with the carport kit, you have the options to install gutter if it suits your needs.
• Total Weight: Over 460kg – solid and substantial for superior durability

Benefits of 1.5m Section Design (Post to Post):

• Enhanced Stability & Strength:The optimized 1.5m section spacing ensures greater rigidity compared to standard 1.8m or 2m designs.
• Superior Load Distribution: Tighter section intervals reduce stress on individual components, increasing the overall lifespan of the structure.
• Robust Performance: Outperforms larger-span competitors in wind, rain, and environmental resistance—ideal for harsh Australian conditions.
• More Steel, More Strength: Our closer portal spacing means more steel is used per carport—translating into higher total weight and significantly improved resilience.

Advantages of New Beam Design:

• Increased Structural Rigidity
• Improved Roof Support
• Enhanced Stability
• Superior Wind Resistance
• Improved Load Distribution
• Superior Wind Resistance
• Dual-Side Support

Built for Performance and Longevity:

• Frame Material: SHS (Square Hollow Section) galvanized steel – designed for structural integrity.
• Posts: 50mm x 50mm, 1.8mm thick – hot-dip galvanized for long-term rust resistance
• Assembly: Precision-engineered bend technology and slip-fit connections for fast, secure DIY installation

Our smart engineering approach ensures a rigid structure with excellent load-bearing capacity and resistance to wind environmental stress.

Carton Dimensions:

• Carport Size: 6200(W) x 1500(D) x 3900(H)mm
• Wall Height: 3100mm | Ridge Height: 3900mm

Optional Height Extension: Extend up to 700mm for a total of 3.8m (Wall) / 4.9m (Ridge) – available at additional cost

• Number of Cartons: 9 - 12
• Carton Dimensions: 2.20m x 1.10m x 0.8m
• Total Weight:   1050kg - 1100kg
• Pickup Requirements: A 7ft trailer is required to pick up this product from warehouse/ depot

Additional Notes: Forklift assistance will be provided if you are picking up from nearest depot.

Delivery:

1. Free Local Pick-up: 10/39-45 Spalding Avenue, Sunshine North, VIC 3020. Pick-Up Hours - Monday to Friday, 10AM - 4 PM (Weekend Pick-Up Available by Appointment only)
2. Australia Wide Shipping:

• • Cheapest: Delivery to a nearby local depot (requires a 7ft trailer)
  • Residential: Available via Tailgate truck (additional cost)

  • Delivery Cost: Use "Calculate Shipping" or enter your address at checkout.
