Portable Carport 6.2(W)x7.5(D)x3.9(H)m Gable Roof

Pickup & Availability

Pickup Available at Carports Factory Outlet Warehouses
⏳ Usually ready in 10+ business days

Warehouse Pickup Locations

• Queensland (QLD)
  📍 1/32 Alta Rd, Caboolture QLD (4-5 weeks from the date of order)
  🕘 Monday–Friday: 7:00 AM – 4:00 PM
  📅 Weekend pickup available by appointment only
• Victoria (VIC)
  📍 10/39–45 Spalding Avenue, Sunshine North, VIC 3020 (5-10 business days from the date of order)
  🕘 Monday–Friday: 10:00 AM – 4:00 PM
  📅 Weekend pickup available by appointment only

✔ Forklift assistance provided
✔ A 7ft trailer or larger is required for pickup

Building Foundation

• Recommended installation on flat or level concrete surfaces
• Best suitable for reinforced concrete slabs or concrete piers
• Supplied with high-strength Dyna bolts for secure anchoring into concrete

Key Product Specifications

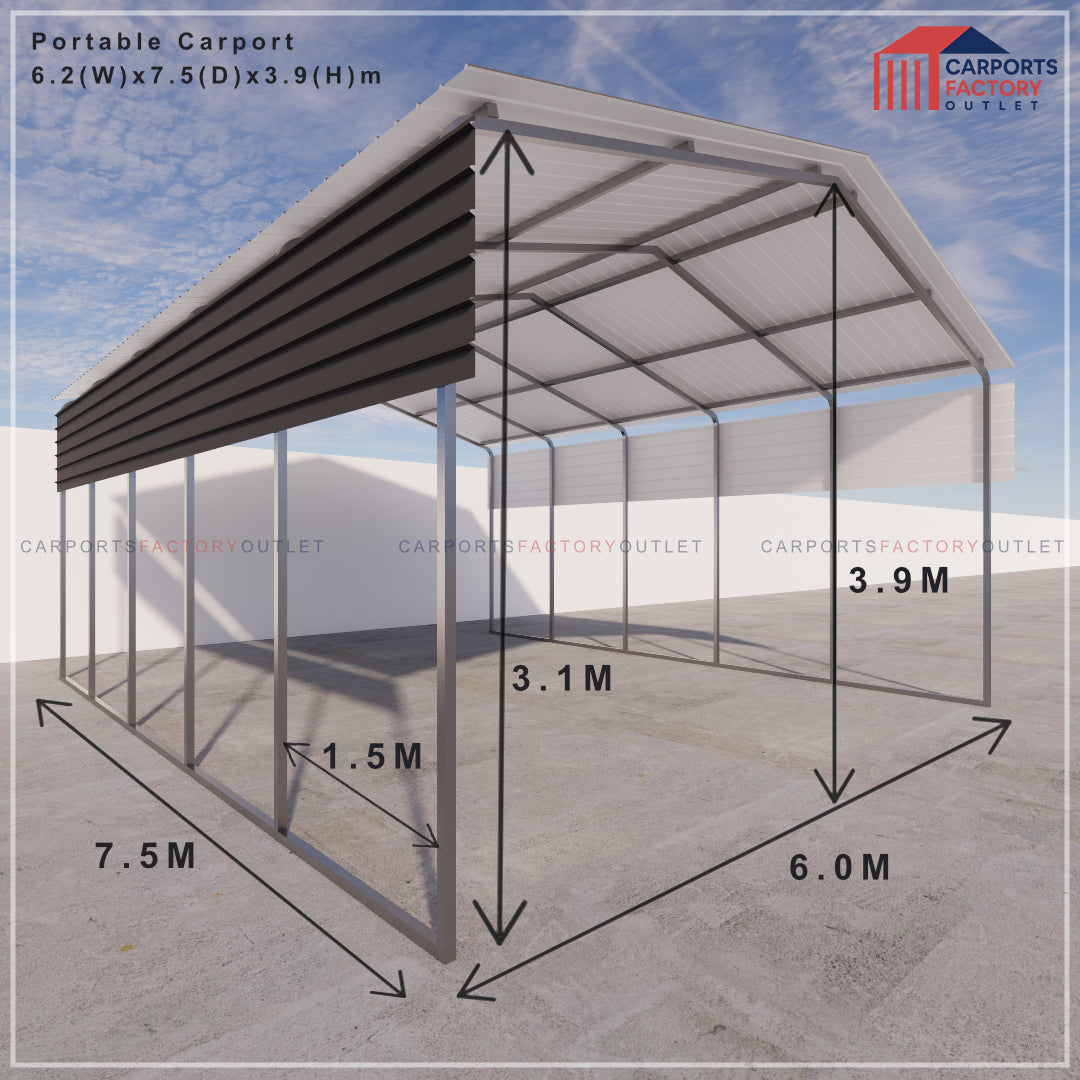

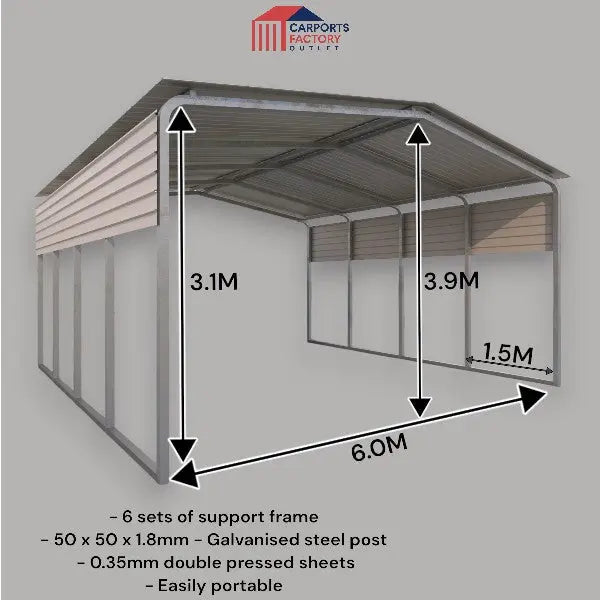

• Overall Dimensions: 6.2m (W) × 7.5m (D) × 3.9m (H – Ridge)
• Wall Height: 3.1m
• Ridge Height: 3.9m

Optional Height Extension

• Extend up to 700mm
• Total Height with Extension:
• Wall Height: up to 3.8m
• Ridge Height: up to 4.6m
• Available at additional cost

Roofing System

• Roof Panels: 0.35mm thick galvanized steel
• Finish: High-grade, corrosion-resistant colour-coated steel for long-term durability
• Trims: Supplied in cream colour
  (Trim colour does not affect strength, performance, or product life)

Structural Weight & Durability

• Total Structure Weight: Over 670kg
• Packed Weight Range: 670kg – 720kg

Heavier construction means more steel, greater rigidity, and superior long-term performance.

Benefits of 1.5m Section Design (Post-to-Post)

Enhanced Stability & Strength: Optimised 1.5m portal spacing provides greater rigidity compared to standard 1.8m–2.0m designs

Improved Load Distribution: Reduced stress on individual components, increasing overall lifespan

Superior Performance: Designed to perform reliably in Australian wind, rain, and harsh environmental conditions

More Steel, More Strength: Closer portal spacing results in higher steel usage and significantly improved resilience

Advantages of New Beam Design

• Increased Structural Rigidity
• Improved Roof Support
• Enhanced Stability
• Superior Wind Resistance
• Improved Load Distribution
• Superior Wind Resistance
• Dual-Side Support

Built for Performance & Longevity

• Frame Material: SHS (Square Hollow Section) galvanized steel
• Posts: 50mm × 50mm × 1.8mm thick
• Finish: Hot dip galvanized for long-term corrosion resistance

Engineering & Assembly

• Precision-engineered bend technology
• Slip-fit connections for fast, secure DIY installation

This smart engineering approach delivers a rigid structure with excellent load-bearing capacity and resistance to environmental stress.

Packaging & Transport Details

• Number of Cartons: 7 – 9
• Carton Dimensions: 2.20m × 1.10m × 0.60m
• Total Packed Weight: 670kg – 720kg

Pickup Requirement

• Minimum 7ft trailer required for warehouse collection

Delivery Options

Free Local Pickup

• QLD: 1/32 Alta Rd, Caboolture, QLD 4510
• VIC: 10/39-45 Spalding Avenue, Sunshine North, VIC 3020

Australia-Wide Shipping

• Depot Delivery (Most Economical): Delivered to nearest freight depot (7ft trailer required for collection)
• Residential Delivery: Tailgate truck available (additional cost applies)

💡 Delivery cost can be calculated at checkout by entering your address.
