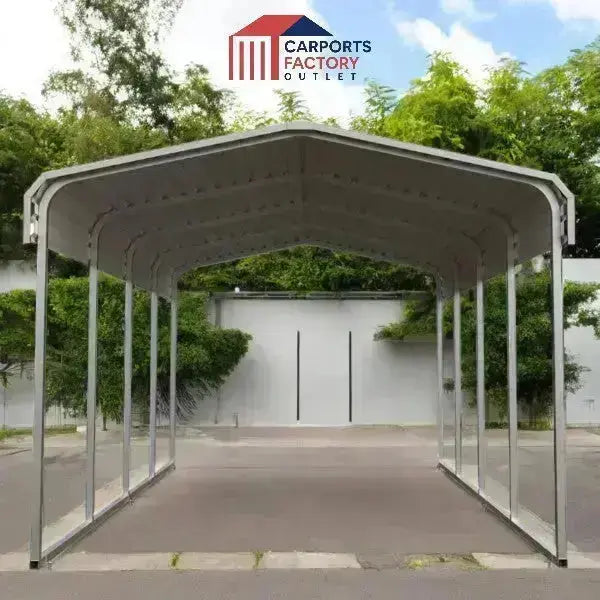

Portable Carport 3.3(W)x5.9(D)x2.8(H)m Wrapped Roof

Building Foundation:

• Flat Ground
• Piers or Concrete Slab

Ground Fixing Options:

• Concrete Surface: Supplied with high-strength Dyna bolts
• Soil or Dirt Surface: Aluminium ground spikes available – optional add-on

Key Product Specifications:

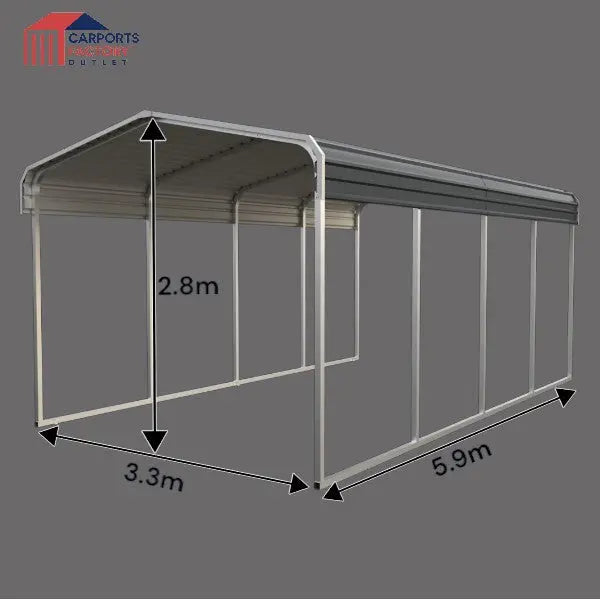

• Dimensions: 3.3m (W) x 5.9m (D) x 2.8m (H Ridge)
• Wall Height: 2.4m | Ridge Height: 2.8m

• Roofing: 0.32mm thick galvanized steel panels with high-grade corrosion-resistant paint for maximum longevity

To meet transport requirements, this shed uses shorter roofing sheets instead of full-length panels. As a result, silicone sealing is required at the joins to ensure proper waterproofing.

• Total Weight: Over 240kg – solid and substantial for superior durability

Wrapped Roof Design:

DIY installation Features a continuous roofline that extends over the sides, providing enhanced protection from rain, wind, and sun. This design not only adds structural strength but also gives the carport a clean, modern and contemporary appearance.

Built for Performance and Longevity:

• Frame Material: SHS (Square Hollow Section) galvanized steel – designed for structural integrity.
• Posts: 50mm x 50mm, 1.5mm thick – hot-dip galvanized for long-term rust resistance
• Assembly: Precision-engineered bend technology and slip-fit connections for fast, secure DIY installation

Our smart engineering approach ensures a rigid structure with excellent load-bearing capacity and resistance to wind environmental stress.

Carton Dimensions:

• Carport Size: 3300(W) x 5900(D) x 2800(H)mm
• Wall Height: 2400mm | Ridge Height: 2800mm
• Number of Cartons: 2 - 3
• Carton Dimensions: 2.20m x 1.10m x 0.6m
• Total Weight:   240kg - 290kg
• Pickup Requirements: A 7ft trailer is required to pick up this product from warehouse/ depot

Additional Notes: Forklift assistance will be provided if you are picking up from nearest depot.

Delivery:

1. Free Local Pick-up: 10/39-45 Spalding Avenue, Sunshine North, VIC 3020. Pick-Up Hours - Monday to Friday, 10AM - 4 PM (Weekend Pick-Up Available by Appointment only)
2. Australia Wide Shipping:

• • Cheapest: Delivery to a nearby local depot (requires a 7ft trailer)
  • Residential: Available via Tailgate truck (additional cost)
  • Delivery Cost: Use "Calculate Shipping" or enter your address at checkout.
